MAC II

Supporting our Warfighters Around the World

  • Supporting warfighter readiness with a cost-effective, deployable system
  • Organization: D&D Machinery and Sales, Inc.
  • Used by the Air Force and Allied Forces to assemble air-delivered munitions around the globe

325,000 Square Feet of
Manufacturing Capabilities

A/E32K-9 Munitions Assembly Conveyor (MAC II)

Munitions Support Equipment for our warfighters

  • Compact and light weight design
  • Utilizing commercial parts (COTS)
  • Rapid assembly/disassembly
  • Fully palatized unit
  • 40+ years in manufacturing
  • 200k ft2 with 3, 4 and 5 axis CNC, lathes
  • Large Flexible Manufacturing Systems (FMS)
  • 24/7 “lights out” operations
  • MIG/TIG and Flux Core welding.
  • Acceptance and load testing

RAMS (OLD) VS MAC II (NEW)

Rapid Assembly Munitions System (RAMS):

  • Limited to 1000lb. bombs
  • Designed in the mid-70s
  • Heavy steel construction

MAC II

  • 2,000lb. JDAM bomb capacity
  • Designed in 2000 using COTS components
  • Lightweight aluminum throughout

Mission Context

Problem Statement

  • Legacy system too heavy with limited capacity
  • Unable to support 2,000 lb. JDAM requirements
  • Need for lightweight, rapid deployment, with fast assembly
  • Air Force Combat requirements:
    • Modular
    • Rapid setup/teardown
    • Increased bomb assembly efficiency
    • Safety – reduced manual lifting and handling of heavy bombs

Solution Overview

  • MAC II (A/E32K-9) was developed for new generation requirements
  • Compact, lightweight, fully palletized
  • Uses Commercial-Off-The-Shelf (COTS) components
  • Over 170 systems have been manufactured and deployed worldwide

Key Features

  • Rapid assembly/disassembly
  • Improved air lines and tool trays
  • Bomb hoist integration
  • Compatibility – wide range of munitions GBU/JDAM and general-purpose bombs
  • CAD-driven engineering with 3D printing and CMM precision
  • Air transportable on a C-130 or C-17

Operational Benefits

  • Agile Combat Employment (ACE)
  • Increased sortie generation rate
  • Reduced manpower requirements (35%-50%)
  • Improved safety; reduced fatigue and injury
  • Decreased setup from 4-6 hours to 1.00-0.50 hours
  • No tools needed for setup
  • Minimal downtime due to COTS parts

Performance Results

  • Successfully fielded globally
  • ISO 9001:2015 certified manufacturing

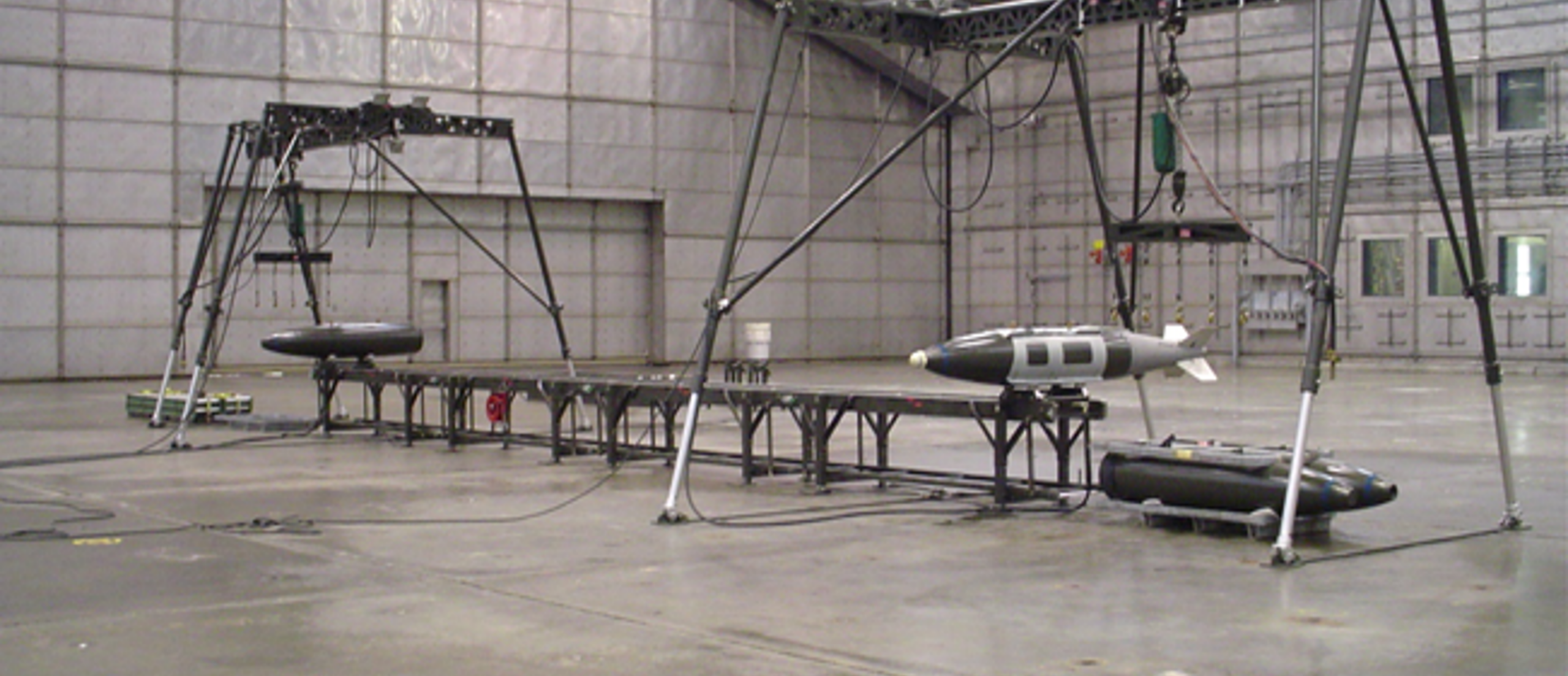

  • Climate tested: +125F to -25F @McKinley Climatic Laboratory
  • Proven @ Operation Inherent Resolve
  • Red Flag and ACE proven rapid deployment

Implementation & Integration

  • Integrated into Air Force munitions operations
  • Fully palletized = transportable & deployable worldwide
  • Compatible with numerous bomb applications
  • Interoperability with the UK, Australia, Germany, and other NATO allies

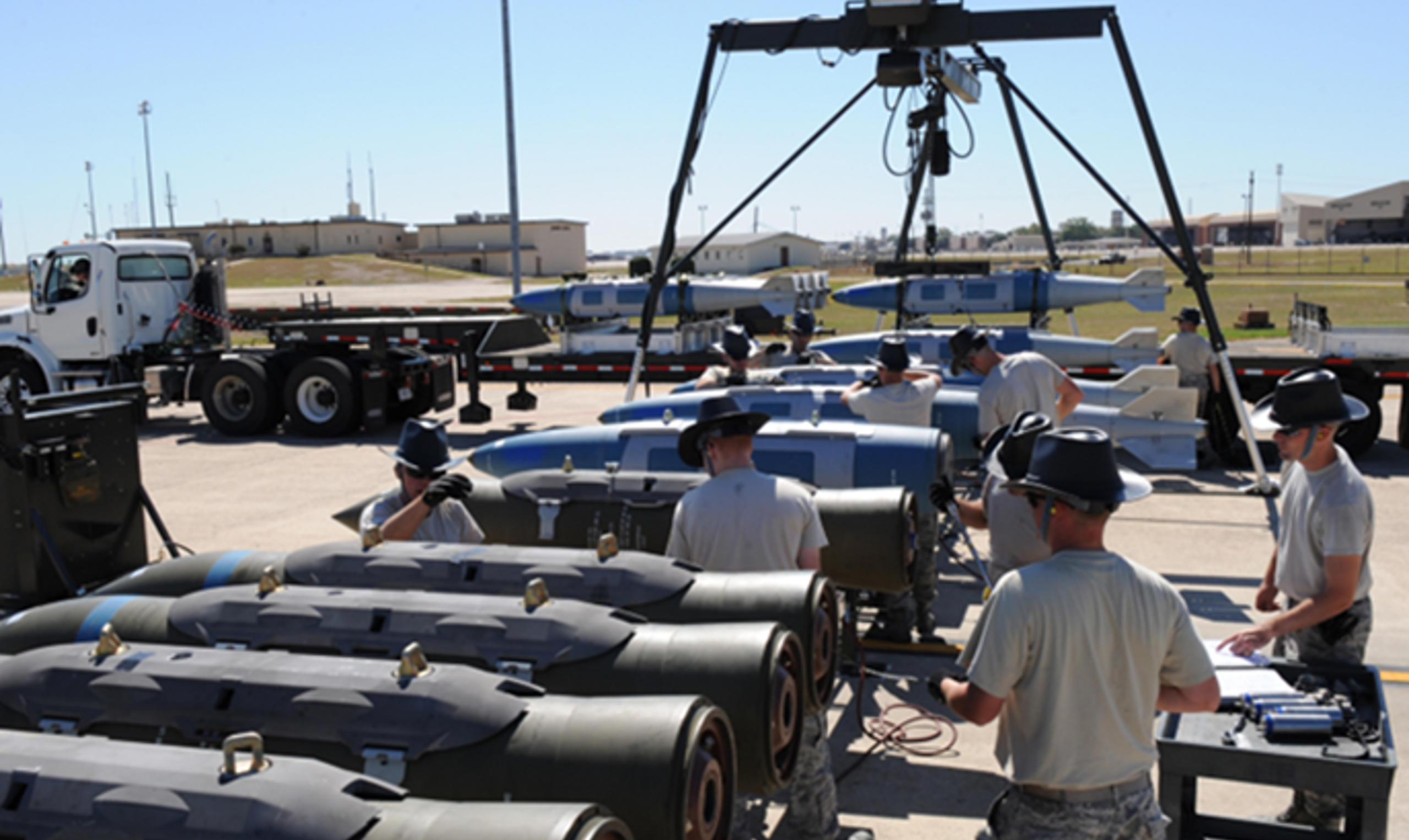

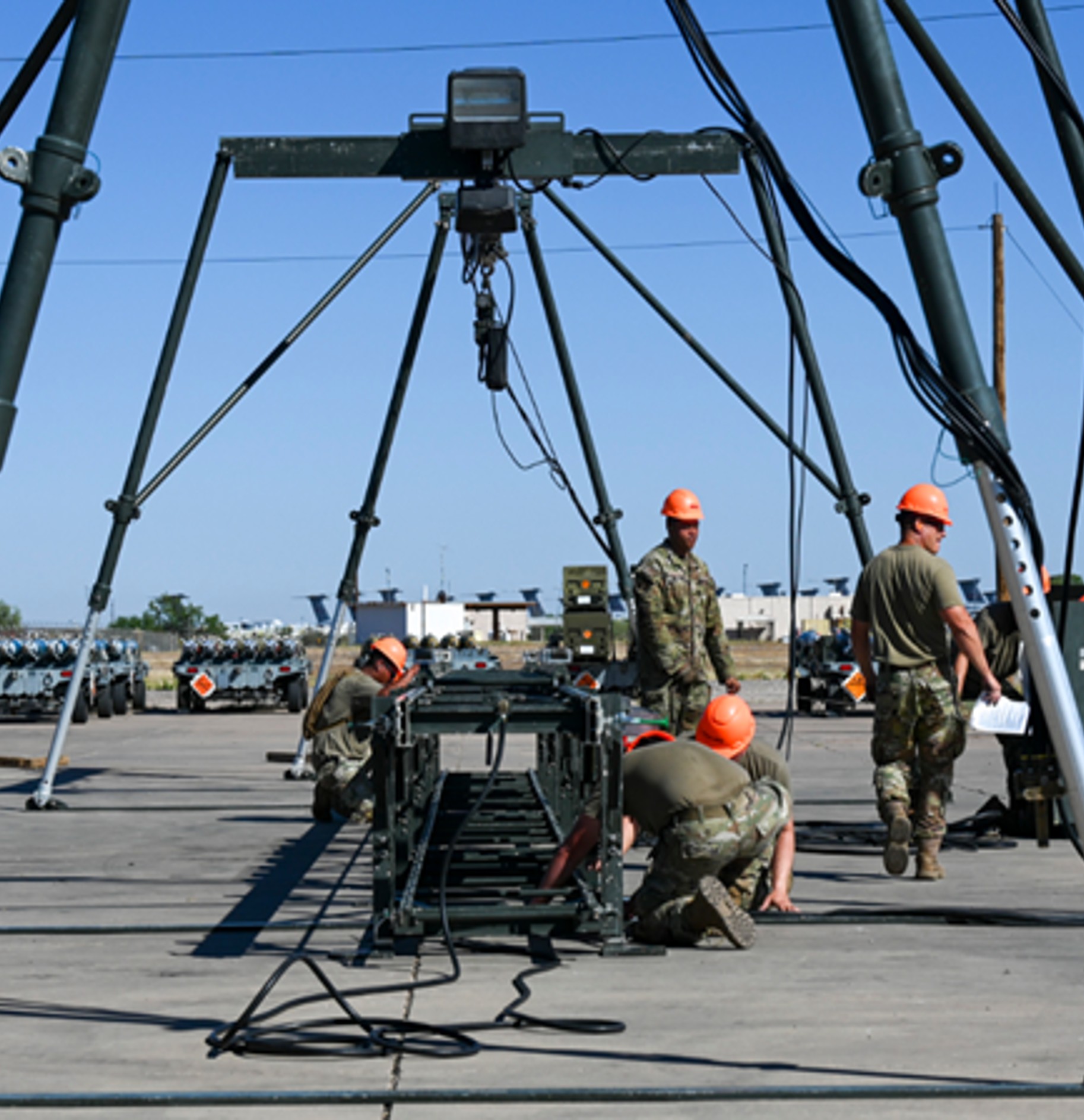

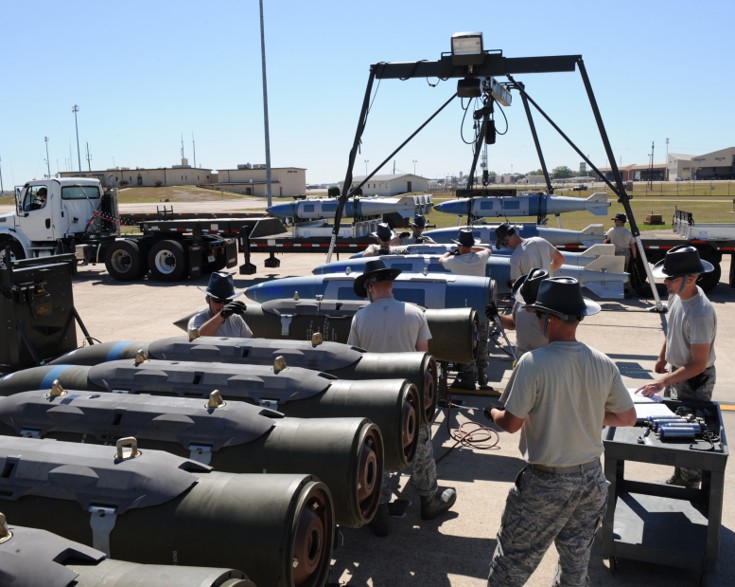

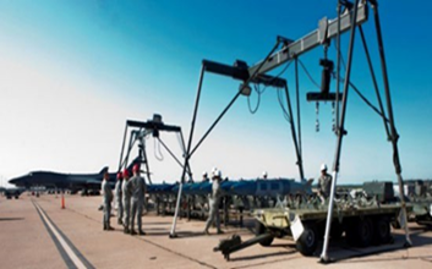

Airmen Build MAC

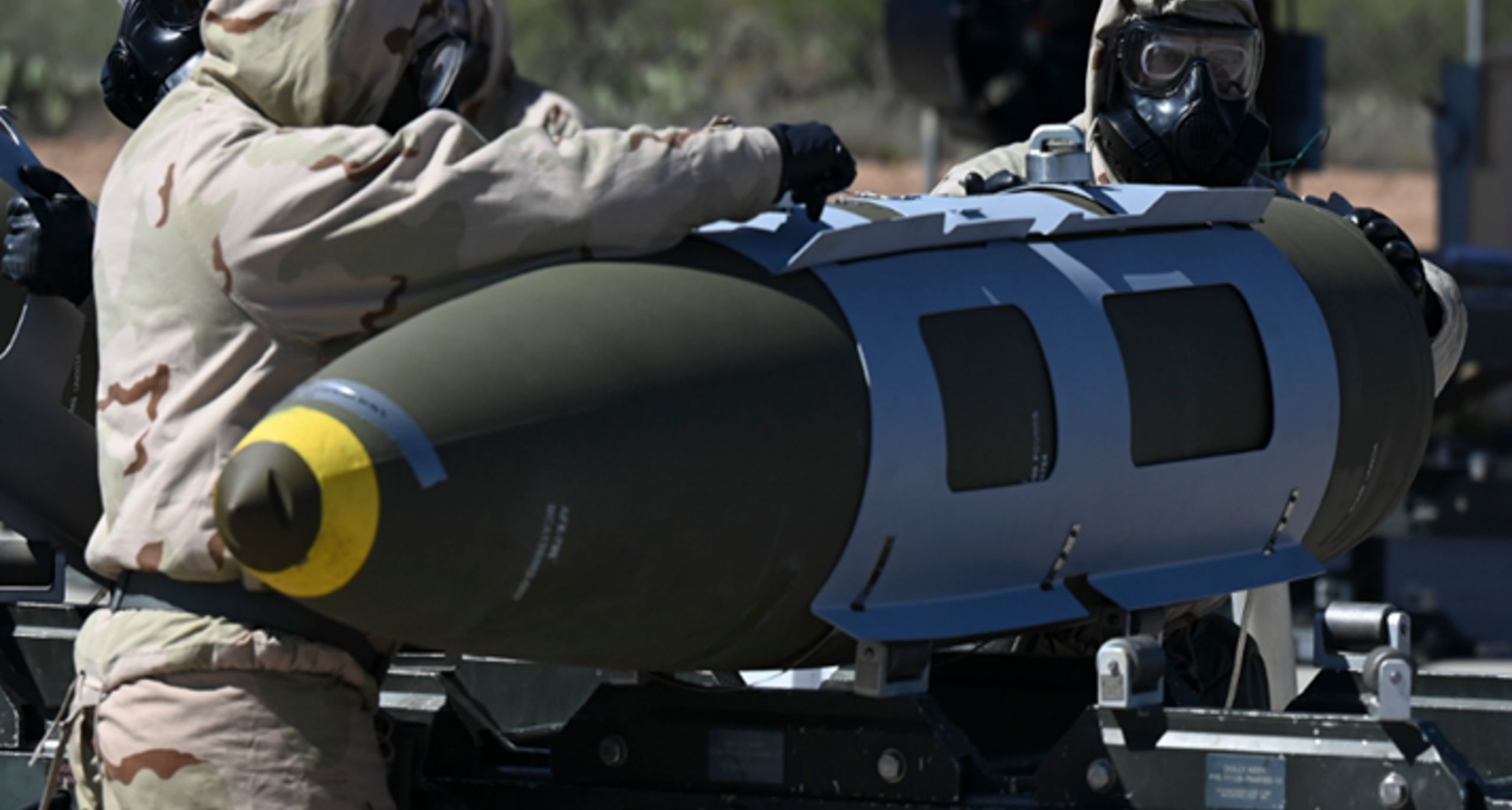

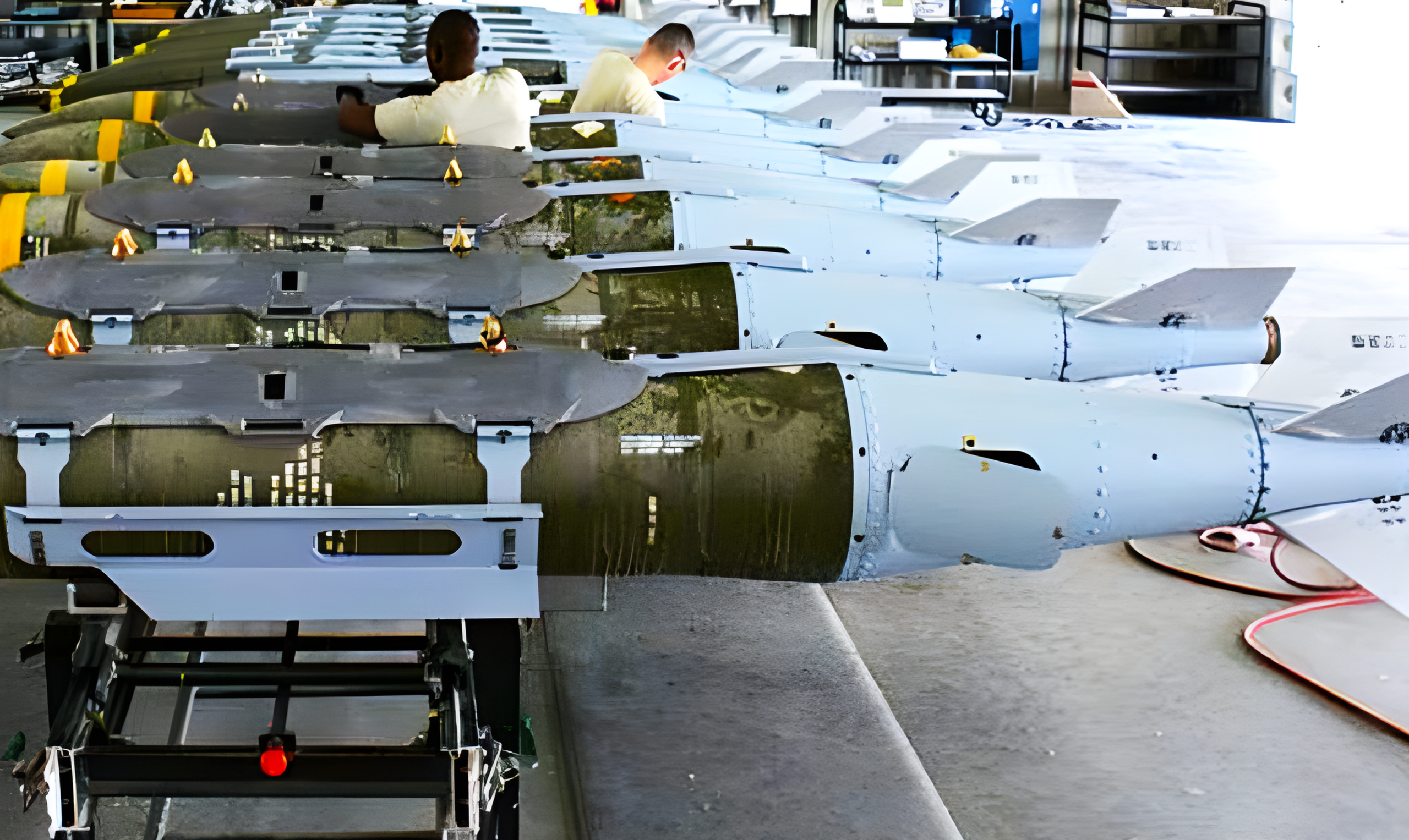

MAC II Build

Acquisition & Cost

  • 100% in-house manufacturing = cost efficiency
  • COTS components reduce sustainment costs
  • Unit cost for MAC II assembled on MAC II trailer: Please contact us at info@ddmach.com for pricing
  • Unit cost for MAC II Tactical Package: Please contact us at info@ddmach.com for pricing
  • Contract type: FMS, Commercial Buy, PROS V

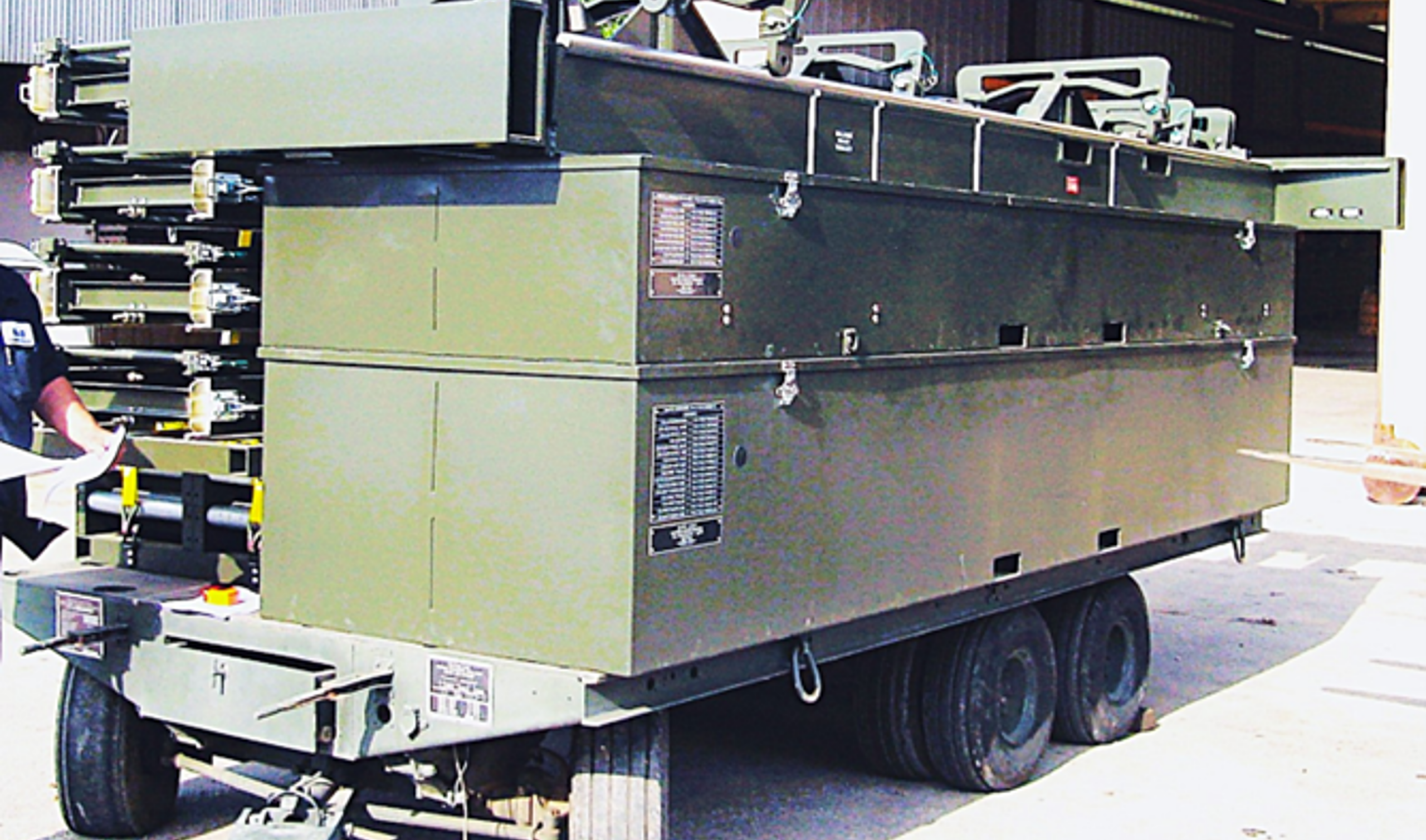

MAC II Tactical Package

The complete MAC II system includes the MAC II conveyor system, two MAC II trailers: one holding the MAC II system; the other with two compressors and one Lighthall

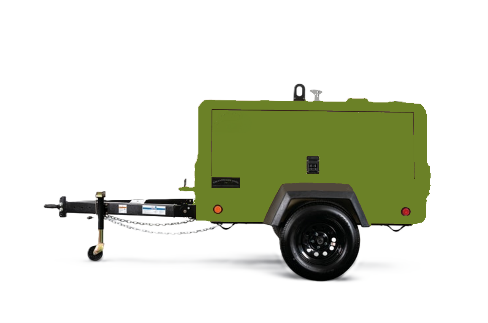

MAC II Compressor system (2ea) is a highly versatile, diesel-powered mobile rotary screw, single stage air compressor. This standout feature allows operators to seamlessly adjust both air pressure and flow directly from the digital control panel without requiring tools.

Compressor Performance

  • Free Air Delivery (Volume): 185 CFM (5.2 m³/min)
  • Rated Operating Pressure: 100 PSIG (6.9 bar)
  • Adjustable Pressure Range: 80 to 150 PSIG (5.5 to 10.3 bar)
  • Air Discharge Outlets: 2 x 3/4-inch valves (19mm)
  • Engine: Doosan D24, 4cyl, 2.4L, 12.2hrs @ full load, fuel capacity – 34.5 gal (130.6L)

Dimensions with Running Gear

  • Length – in (mm) 137.4 (3490)
  • Width – in (mm) 68.5 (1740)
  • Height – in (mm) 67.5 (1715)
  • Track Width – in (mm) 60 (1524)
  • Tire Size – in 15
  • Shipping Weight – w/o fuel – lb (kg) 2269 (1029)
  • Working Weight – w fuel – lb (kg) 2477 (1124)

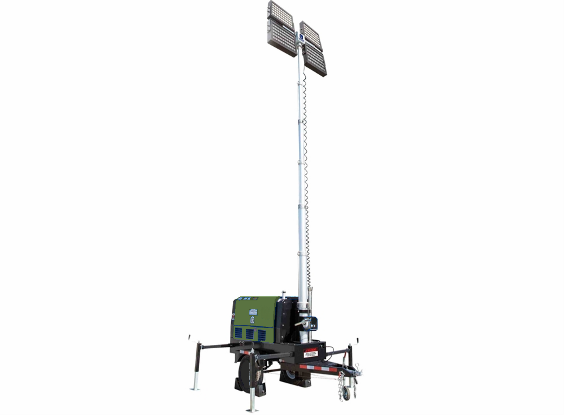

MAC II Mobile Light Tower is a towable telescoping 25’ tower with (4) LEDs with a 6kW water-cooled diesel generator.  The system produces 259,200 lumens.  Enough to light a 6-acre area continuously for 19+ hours.

  • Dusk-to-dawn sensor for AutoStart
  • Cold weather package (glow plugs, coolant heater, tank fuel warmer, battery blankets, and 0W-40 synthetic oil)
  • Quiet low speed 1,800rpm, 4cyl diesel for longer life
  • Four 480-watt LED lamps (64,800 lumens each)
  • LED heat sinks to control heat offering extended life
  • Field serviceable with replacement LEDs
  • IP 65 and IP67 rated to withstand extreme environmental conditions
  • -40 to +80C, waterproof, dust/dirt proof, and humidity resistant.
